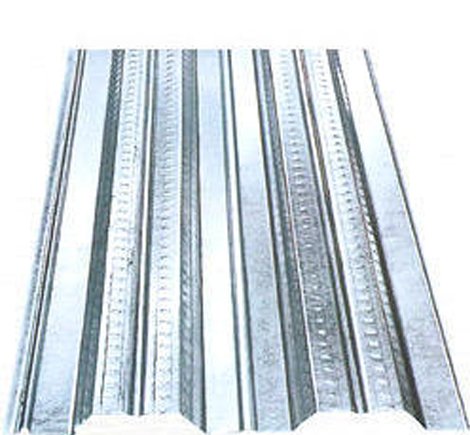

STEEL DECKING SHEET

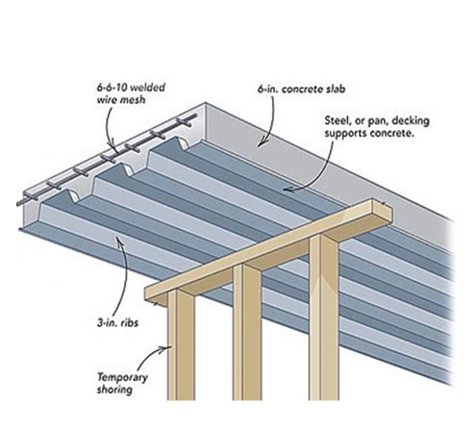

Steel Deck can be used as a composite floor system or as a permanent form work. The fast and simple installation of this high strength product, gives immediate access to a working platform and requires no stripping after concrete curving. Coupled with nil or far less propping compared to strippable frame supports. Steel deck save considerable construction time which translates to savings in overall construction cost, site accessibility for trades and site safety.

MATERIAL

Our deck is produced from galvanised and colour coated galvanised steel produced to IS:513, IS:277, IS:14246, AS 1397- G300-Z275 in the thinckness .08mm , 1mm, 1.2mm.



STEEL DECK - Profile 51 mm 1 Rib, 720 mm cover width

Thickness TCT
(mm)
Weight
(Kg/m2)
Section Inertia
(cm4/ m)
Section Resistance
(cm3/ m)
CR steel IS: 513
Galvanized steel
IS:277
0.80
8.38
52.8
16.45
Galvanized Colour Coated
IS: 14246
1
10.55
64.55
20.69
Zincform
1.20
12.74
76.38
26.39
Please refer to the color shade card for colours.
Technical details available on request

PROVEN DURABILITY AND VERSATILITY WITH A ROBUST & SUSTAINABLE SYSTEM...


STRENGTH

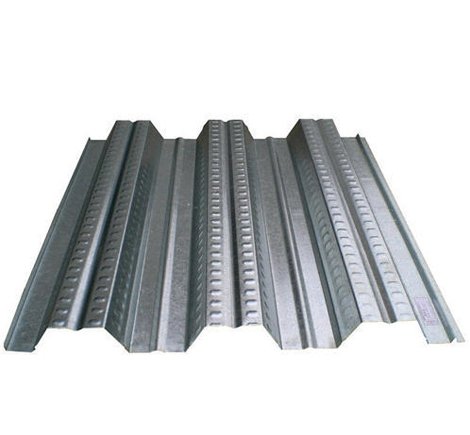

Our steel deck have special embossments , rolled into the profile created the highest bond between concrete and the steel floor, together with the smaller ribs and flutes enhances our product`s composite action and rigidity. Used in composite design , steel deck performs as positive reinforcement and a permanent form support , providing savings in concrete and reinforcement steel.

FEATURES



» Range of decks suitable for all applications.
» Unique profile requires less concrete than other decks to achieve any given slab thickness.
» Gauge range 0.85mm through 1.5mm for economic solutions.
» Large range of section depths to suit all applications.
» Fire performance up to 4 hours.
» Acoustic robust solution.
» Spans up to 6 metres unpropped.
» Mesh or Dramix steel fibre reinforcement.
